2000-2007 Toyota Tundra Sequoia Lifted Front Upper Control Arms 2 Inch-4 Inch

Furydiesel 2000-2007 Toyota Tundra Sequoia Lifted Front Upper Control Arms 2 Inch-4 Inch

Fitment:

2000-2006 Toyota Tundra
2001-2007 Toyota Sequoia

Package Includes:
1 X Pair of Front Upper Control Arms (Left & Right)

Features:

• Improves Front Suspension, Handling, Predictable Response and even Prevents Premature Tire Wearing.
• Ensure Even or Desired Contact with the Ground; i.e. Tires Wear more
• Constructed from 1.25″ DOM tubing for superior strength and durability
• Evenly and Increase Traction and Handling.
• Direct Bolt-On Installation or Replacement.
• Corrected Angle Balljoint for 2-4″ Lifted Trucks.
• Come with rubber bushings, can be replaced with polyurethane bushings

What are Aftermarket Upper Control Arms and When Do I Need Them?

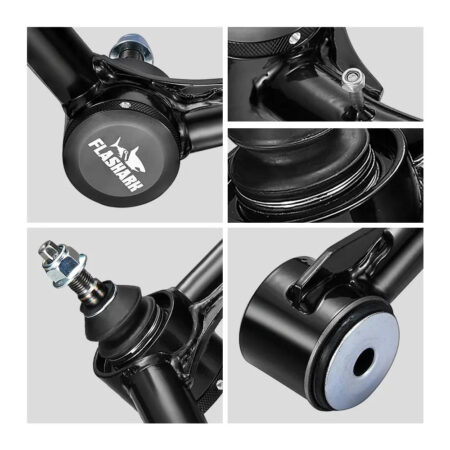

Furydiesel Front Upper Control Arms are designed to provide the ultimate strength, stability, and appearance. They are TIG-welded and arrive fully assembled and ready to install, with ball joints, bushings, and hardware included. Greasable fittings allow easy maintenance of the ball joints.

Upper control arms are found on independent front suspension (IFS) vehicles and generally connect the top of the spindle to the frame. The UCA is generally not a load-bearing piece of an IFS suspension; rather, its purpose is to guide your spindle in a pre-determined motion when your suspension cycles up or down. Load is usually handled by the lower control arm, which connects to the lower portion of the spindle.

The sideways bolt that goes thu the rubber bushing pressed into the control arm is also 70nm (52 ft-lbs) + 1/4 turn, the big bolt that goes straight up into the captured nut inside the frame is 100 Nm (74 ft-lbs) + 1/4 turn, and the ball joint bolts are 20Nm (15 ft-lbs) + 1/4 turn.
